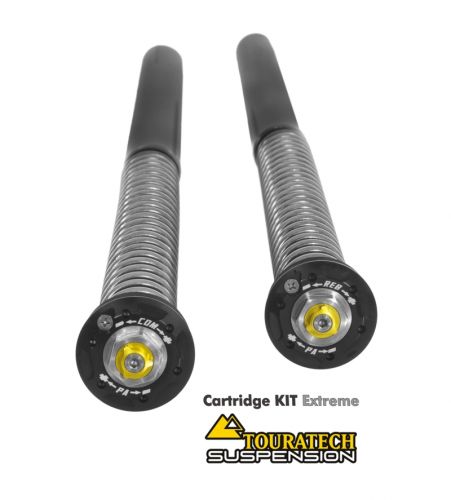

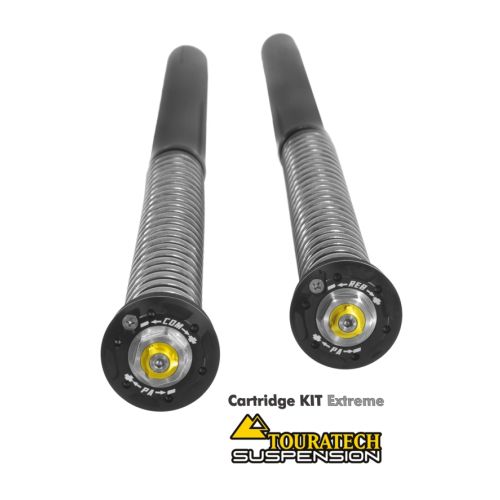

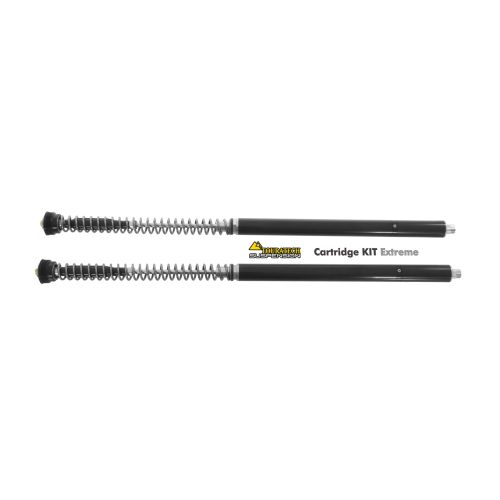

Touratech Suspension Kartuş seti, Extreme, BMW F800 GS Adventure MY≥2013

Size Faydaları:

“Extreme” ayar aralığı , kuyruk çantasından tam dolu çanta sistemine ve/ya da artçı ile birlikte kullanıma kadar , her tür yükleme ile başa çıkabilir. Yay önyükleme ,kompresyon ve geri tepme tamamen ayarlanabilir. Sönümleme yağı , yağın hassas dozajlamasını sağlayan kapalı bir kartuş içinde yer alır. Böylece kapalı kartuş , çatalın önemli ölçüde daha rafine ve kesin tepki vermesini sağlar. Hassas sönümleme ayarı , amortisörü tüm yol koşullarına ve sizin sürüş tarzınıza uygun ayarlamanıza imkan tanır.  Ön tekerleğe ağır yük binen son derece zorlu yol koşullarında , entegre “Hidrolik Endstop” , çatalın mekaniksel darbe almasını önler.

Motosikletiniz ile tamamen yepyeni bir sürüş tecrübesi yaşayacaksınız.

Features of the Touratech Suspension Closed Cartridges:
- The Closed Cartridge is installed into the original fork. This way the fork bridge/handlebar mount,
brakes and wheel control and handlebar geometry are retained in full.
- No additional modifications to the fork are required
- A Closed Cartridge is an Extreme suspension strut in the fork.

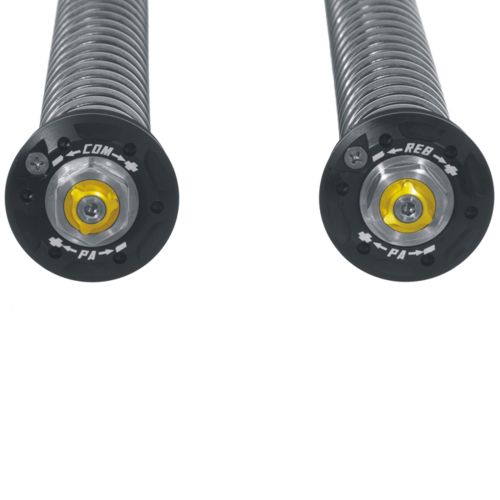

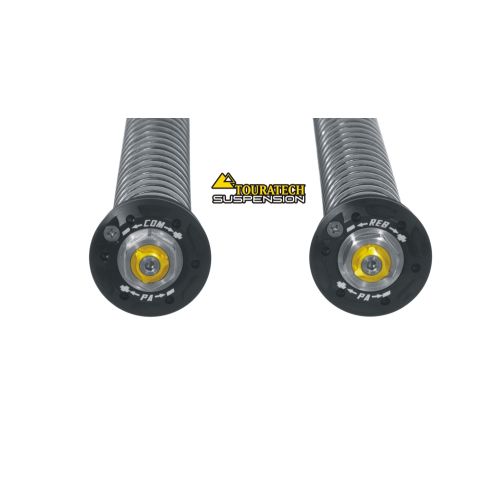

- Fully adjustable top-side spring preloading (adjustment tool including with delivery) in both fork legs for optimal balance of the motorbike. 20mm via 12 clicks
- Separately adjustable rebound damping 20 clicks (1 fork leg)
- Compression damping 20 clicks (1 fork leg) for damping.
- For precise damping settings at high damping frequency and high load (poor roads, offroad with luggage).
- High damping stability and robustness through use of 35 mm piston.
- Closed design (Closed Cartridge), hence closed oil cartridge for damping
and the oil in the fork is for lubrication only.
- Damping oil (cartridge) and nitrogen, in a nitrogen accumulator at the base of the cartridge.
- Extremely refined response behaviour of the fork while providing high durability and stability at the same time.
- The separation of oil and nitrogen avoids foam formation and no stickslip in the fork.
- This means reproducible damping performance at all times, even under the most extreme conditions.
- Prevents the fork from going solid. Each cartridge is fitted with an "Hydraulic endstop" against against impacting.

The basic setup is adjusted for the demanding adventure rider with luggage.
Adaptation for exceptional requirements is possible. The suspension strut is then customised by us to your requirements using a spring with a suitable spring rate and other configurations.

If you have any further questions, we will be happy to advise you. Contact us.

Scope of delivery:

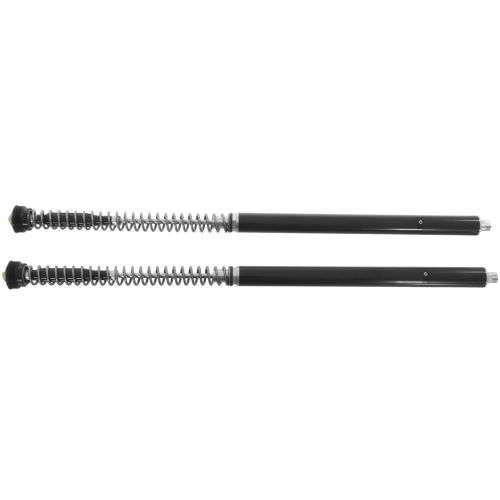

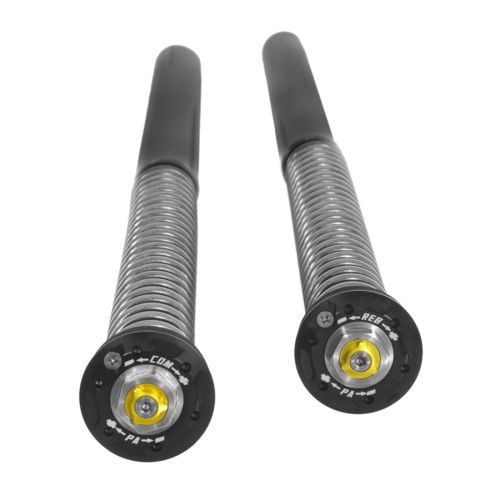

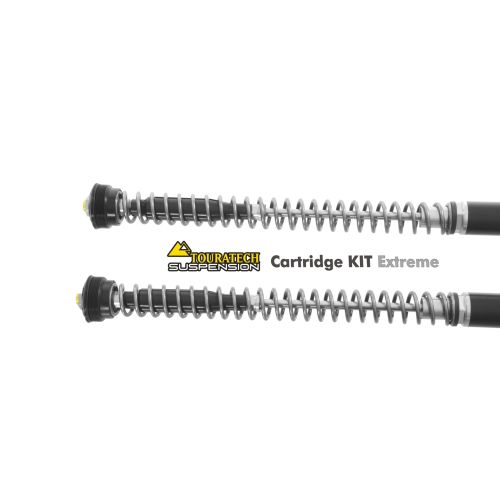

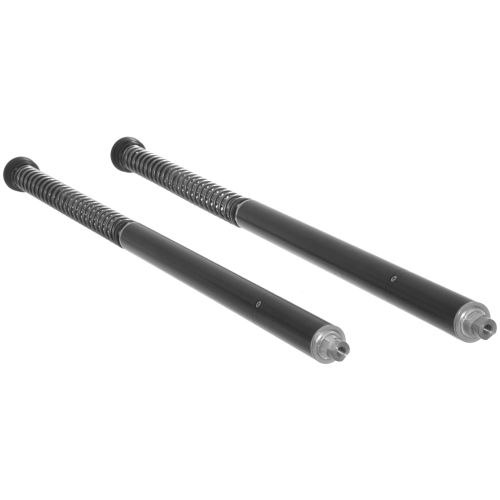

- 2x Closed Cartridge
with damper setting, (1x) rebound stage, (1x) compression stage.
with spring preloading via adjustment tool (2x)
- adjustment tool
- ready for installation and ready-to-ride, fitted with pre-mounted fork spring.
- 1 litre oil (for installation of fork)
- user manual and instructions for installation
- 2x Fork protection sticker.
